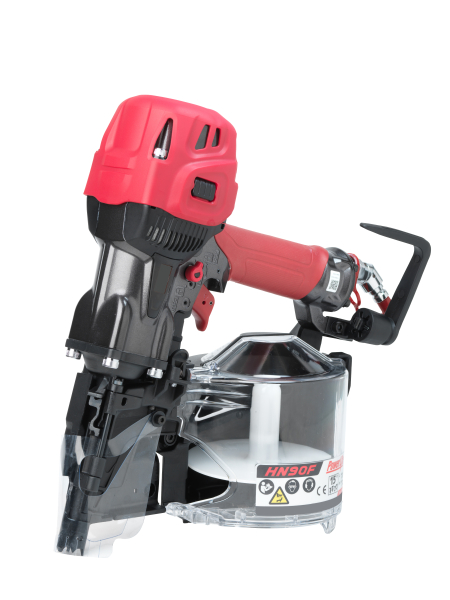

Coils Nailer HN-90F
Coils 23-25-28-31 from 50 up to 90 mm Coils sheet from 50 up to 64 mm Scrail from 50 up to 75 mm
Code
Code : HN90F
Designation : Coils Nailer HN-90F
Useful files
Information details
Nail feeder capacity : 300 pointes
Air consomption : 4.70 l/coup
Nails lenght : 50 à 90 mm
Height : 325
Width : 130
Length : 280
Weight : 2,650
Pressure : 12-23 bars
Net weight : 2.30
Finish : LISSE>ANNELEE>ANNELEE GALVANISEE 12µm>ANNELEE INOX A2>TORSADEE>TORSADEE GALVA 12µm>ANNELEE INOX A4>GALVANISEE>FASCOAT-PH>INOX
Type of nails : COILS 23-25-28-31>COILS SHEET>SCRAIL
Connection size : 1/4"
Thread diameter : 1/4"
Plug Type : GR
Lenght CH : 14
Lenght L : 38
Thread diameter : 1/4"
